Types of Wing Spoilers: A Guide to Aerodynamic Control

Types of wing spoilers affect lift, speed, and altitude in aircraft and cars. This guide explores different spoiler types, their functions, and how they improve vehicle aerodynamics.

What Are Wing Spoilers?

Wing spoilers are special parts on cars that help with how they move through the air. They create downforce, which is important for keeping the tires on the ground, especially when driving fast. Unlike basic spoilers that just change the air’s flow, wing spoilers are shaped and angled to have a real effect on a car’s performance.

It’s important to know the differences between various aerodynamic parts:

• Spoilers: These mainly reduce lift by messing with the air that flows over the vehicle.
• Wings: These are meant to create downforce using their specific angles and shapes.
• Air Dams: Located at the front of cars, these help guide air around or underneath, cutting down on drag.
• Splitters: Found at the front bumper, splitters boost downforce by changing air pressure.

Each of these parts has a different role in making cars work better in terms of aerodynamics.

Why Do Vehicles Use Wing Spoilers?

Cars use wing spoilers for several good reasons related to how they handle at high speeds:

1. Reducing Lift: When cars go fast, they can get lift from air flowing under them. Wing spoilers help push down on the back, fighting this lift.
2. Increasing Downforce: By improving how air moves around and under the car, wing spoilers greatly enhance downforce. This is key for keeping control during acceleration and turning.
3. Improving Handling: With more stability from downforce, drivers feel more secure taking sharp turns or quick moves.

Beyond just function, many car lovers like wing spoilers for their looks. They can make a regular car stand out and give it a sportier vibe while also boosting its performance.

Importance of Understanding Different Types of Wing Spoilers

Knowing about different kinds of wing spoilers is essential for anyone interested in cars. Each type affects how well a vehicle performs in areas like speed and stability. Features like size, adjustability (in models where it’s possible), and materials (like carbon fiber or plastic) play a big part in their effectiveness.

Also, keep in mind that there are laws about installing spoilers that can differ from place to place. Some locations might have rules about size or how much they obstruct visibility. Being aware of both how they work and legal issues helps ensure you can make the most of your vehicle without breaking any rules.

Type	Functionality	Legal Considerations
Rear Wings	Provide significant downforce	Must follow height regulations
Front Spoilers	Cut down on lift when speeding	Might need approval if obstructive
Lip Spoilers	Offer subtle enhancements	Usually face fewer regulations
Adjustable Spoilers	Allow for tuning based on conditions	Check local laws before changes

Understanding these different types of wing spoilers can empower you with knowledge that’s not just useful for personal preferences but also crucial for safe driving whether you’re hitting the road or taking it to a track day.

Overview of Common Types of Wing Spoilers

Wing spoilers are important for cars, especially for those designed for performance or racing. They help improve aerodynamics, enhance stability, and make handling better at different speeds. Knowing the types of wing spoilers available can help car lovers choose the right upgrades for their vehicles.

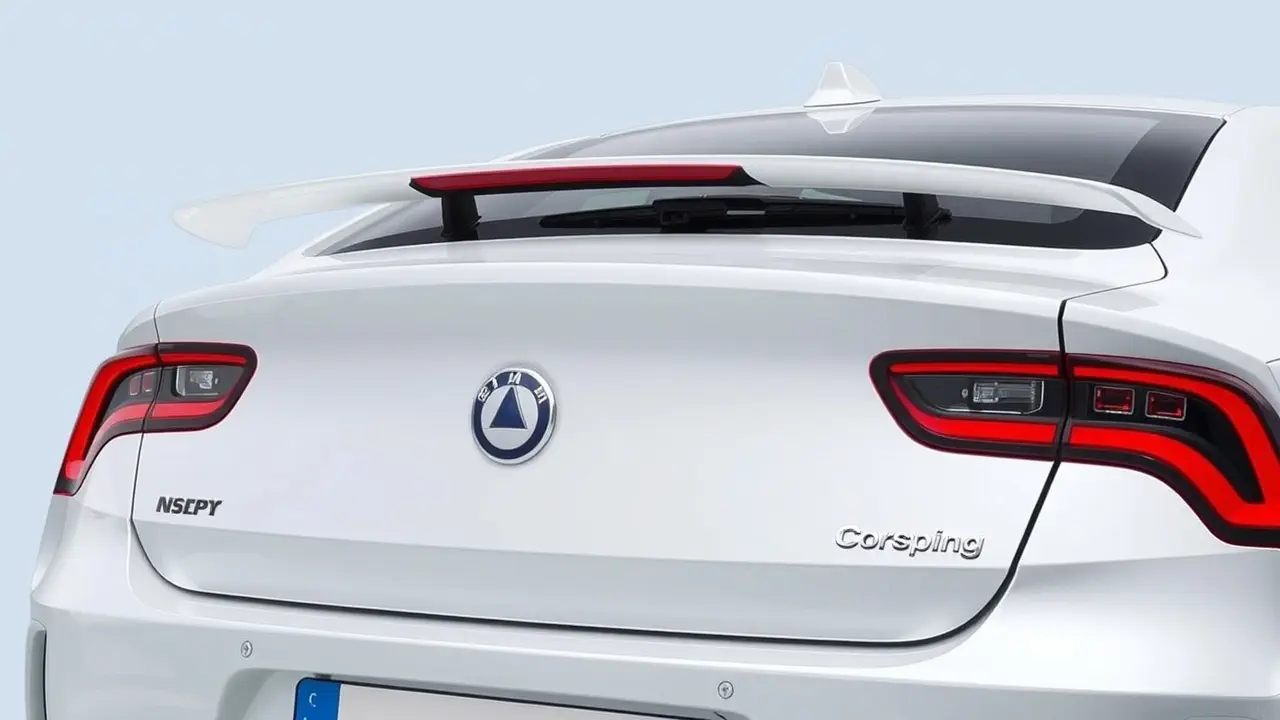

Fixed Rear Spoiler Explained

A fixed rear spoiler is an aerodynamic device that is always attached to the vehicle. Its main job is to create steady downforce when the car goes fast. This design is straightforward, which means it offers dependable performance without complicated adjustments.

Benefits:

A fixed rear spoiler greatly improves high-speed stability. It helps with braking during races, allowing drivers to take corners more effectively.

Drawbacks:

However, a fixed spoiler doesn’t allow for adjustments. This means it might not perform well in all driving conditions, as it cannot adapt to changes in speed or road type.

Adjustable or Active Aero Systems (What Is an Adjustable Car Spoiler?)

Adjustable or active aero systems are a more advanced option for managing airflow around a car. These systems use either hydraulic or electronic actuators that change the angle and position of the spoiler based on real-time data about vehicle speed.

Mechanisms:

Hydraulic actuators operate by using fluid pressure to smoothly adjust positions. On the other hand, electronic actuators rely on motors controlled by computers to make precise adjustments.

Benefits:

The main advantage of these systems is their adaptability. As the speed of the vehicle changes, these spoilers adjust their angles to improve drag control and increase downforce when it’s most needed.

Additional Types of Wing Spoilers to Consider

Vertical Spoilers

Vertical spoilers are placed at the back of a vehicle. They help enhance lateral stability when cornering. This reduces unwanted body roll and improves grip on turns.

Hinged Spoilers

Hinged spoilers can move at certain angles when necessary, like during acceleration. This action increases downforce temporarily, making them useful for both street cars and race cars needing better traction.

Ground Spoilers

Ground spoilers are crucial for reducing lift at low speeds, such as when slowing down after a high-speed run or landing. They manage airflow over the car’s surface effectively, ensuring good contact with the road when speed decreases.

Summary of Key Differences Between Fixed and Adjustable Wing Spoilers

1. Adaptability: Fixed wings provide stable support but lack flexibility compared to adjustable wings that can change based on driving conditions.
2. Performance Metrics: Each type affects how a car performs differently; fixed spoilers provide consistent downforce while adjustable ones optimize handling based on current circumstances.

Understanding these various types helps car enthusiasts select modifications that fit their driving style and vehicle needs best—whether they prefer simplicity with fixed designs or advanced technology with adjustable systems.

Fixed Spoilers: The Foundation of Aerodynamic Enhancement

Fixed spoilers, also known as rear spoilers or performance spoilers, are key components in automotive aerodynamics. They are permanently attached to a vehicle, providing consistent aerodynamic effects that boost stability and control at different speeds.

Description

A fixed spoiler attaches firmly to a car’s bodywork, usually at the rear. Its main role is to change airflow around the vehicle, improving aerodynamic efficiency. These spoilers come in various designs; some are sleek and subtle while others are bold and aggressive. However, all fixed spoilers aim to optimize airflow, which helps reduce drag and generate downforce.

How They Work?

Fixed spoilers work by creating drag and downforce together. They change the angle of attack (AoA) against the incoming air, affecting pressure distribution over the car’s surface. As air flows over the spoiler, it creates lower pressure above compared to below—this difference generates downforce that keeps the car stable during fast maneuvers. Reducing lift is also key in improving overall vehicle handling.

Examples

Here are common types of fixed spoilers found on production cars:

• Racing Spoilers: Big wings meant for maximum downforce in motorsports.
• Sports Car Spoilers: Sleek designs balancing style and performance.
• Passenger Car Spoilers: Subtle additions aimed at enhancing fuel efficiency.

These examples show how different types cater not just to looks but also to various driving conditions.

Use Cases

Fixed spoilers have several important uses:

• High-Speed Stability: At high speeds, vehicles tend to lift; effective spoilers counter this by providing necessary downforce.
• Braking Performance: Better stability during braking allows for greater control when slowing down quickly.
• Cornering Performance: A well-designed spoiler enhances grip through turns, keeping tires connected to the road.

These elements significantly boost acceleration too since better traction leads to improved power transfer from engine output onto pavement.

Pros and Cons

Fixed spoilers offer reliable performance thanks to their simple design but they do have some limitations:

Pros:

• Provide consistent performance without needing adjustments.
• Require little maintenance once installed correctly.

Cons:

• Lack of adaptability means they can’t be fine-tuned for specific racing conditions or personal preferences.

Understanding fixed spoilers gives insight into how these components fundamentally enhance vehicle dynamics while balancing aesthetic appeal in automotive design.

Adjustable Spoilers (Active Aerodynamics): Dynamic Downforce Control

Adjustable spoilers, or active aero components, are vital in today’s car design. They help control downforce by adjusting based on the vehicle’s speed and environmental conditions. These advanced devices boost aerodynamic performance, improving handling and stability during high-speed driving.

Description: Position Altered Based on Speed/Conditions

The main job of an adjustable spoiler is to enhance aerodynamics by changing its position depending on how fast the car is going and the driving conditions. At lower speeds, the spoiler can pull back or change its angle to reduce drag. This helps save fuel. But when the car goes faster, the spoiler can extend or tilt to increase downforce. This change is important for keeping traction and control when turning or speeding up.

Mechanisms: Hydraulic and Electric Actuators

Adjustable spoilers work with either hydraulic or electric actuators. Hydraulic systems are strong and can quickly adjust the spoiler but can add weight because of their fluid systems. Electric actuators are lighter and allow for accurate control through electronic signals from the car’s computer system. Both types show major advancements from aviation engineering applied to cars.

Mechanism Type

• Hydraulic
  • High power output
  • Increased weight
• Electric
  • Lightweight & precise control
  • Potentially slower response

Examples: High-Performance Cars and Formula 1 Vehicles

Many high-performance cars use adjustable spoilers as a key part of their design to maximize aerodynamic efficiency. For instance, numerous sports cars have these dynamic features that adjust in different driving situations, boosting performance on racetracks and normal roads alike. Formula 1 cars showcase this technology well; they have complex active aero systems that react instantly as speed changes while tackling tight turns at high speeds.

Use Cases: Optimizing Downforce for Varying Speeds; Enhancing Fuel Efficiency

Adjustable spoilers are versatile tools that not only improve downforce but also help with fuel efficiency under certain conditions. By cutting drag at slower speeds while enhancing grip during rapid acceleration or sharp turns, these devices balance performance with economy. This balance is crucial in racing technology where even tiny differences matter.

Pros and Cons: Improved Adaptability vs. Increased Complexity/Cost

While adjustable spoilers offer significant advantages like better adaptability across various driving scenarios, they also bring trade-offs related to complexity and costs compared to fixed-wing designs:

Pros:

• Better aerodynamic control
• Enhanced handling dynamics
• Performance improvements based on real-time data

Cons:

• Higher initial investment
• Maintenance needed due to moving parts
• More potential failure points compared to simpler designs

Understanding how adjustable spoilers function gives insight into their importance in automotive aerodynamics, especially for enthusiasts looking for optimal setups without losing daily usability.

Lip Spoilers: Subtle Improvements, Minimal Drag

Description: Small, Low-Profile Spoilers at the Trailing Edge (or Front)

Lip spoilers are small and sleek aerodynamic features. They’re usually attached at the back edge of a car’s trunk or the front of the hood. These spoilers improve airflow around the vehicle without causing much drag. Their understated look is perfect for sports cars and other performance-oriented vehicles where style meets functionality. Unlike larger wing spoilers that create a lot of downforce, lip spoilers focus on slight enhancements to aerodynamics.

Examples: Common on Sporty/Performance-Oriented Production Vehicles

You’ll see lip spoilers on many sporty cars right from the factory. Models like Subaru’s WRX STI and BMW’s M series often come with these small additions. They not only make the car look better but also help with stability at high speeds. These features blend well into the car’s design while keeping performance in check.

Use Cases: Subtle Handling Improvement and Minimal Aerodynamic Drag Increase

The real strength of lip spoilers lies in how they improve handling. They manage airflow better than standard designs do, which helps drivers keep control during sharp turns or quick stops. By minimizing drag, they boost stability, especially in racing situations where every bit of control counts.

Pros and Cons: Easy Installation vs Modest Aerodynamic Influence

Lip spoilers are easy to install, usually requiring just basic tools and knowledge. This makes them a popular choice for DIY enthusiasts. However, while they do provide some aerodynamic benefits, they might not generate as much downforce as larger wings designed for serious racing applications. Before adding one, think about your performance goals and whether a lip spoiler will meet your needs effectively.

Pros	Cons
Easy installation	Limited downforce improvement
Aesthetic enhancement	Less effective than larger wings
Improved handling characteristics	May not suit all performance needs

When looking into wing spoilers for your car modifications, knowing how lip spoilers work can help you make a smart decision based on your driving style and looks you want.

Lip Spoilers: Subtle Improvements, Minimal Drag

Lip spoilers are small, low-profile additions found at the trailing edge of a vehicle’s front or rear. They help improve a car’s performance by enhancing aerodynamics while keeping a stylish look. Unlike bigger wing spoilers that create strong downforce, lip spoilers aim for subtle improvements that boost high-speed stability and reduce drag.

Description

These performance spoilers have a minimalist design and are often built into sporty vehicles. They manage airflow around the car to cut down on turbulence and drag without adding much weight. This makes them perfect for drivers who want better handling without changing the overall appearance of their cars.

Examples

You’ll often see lip spoilers on various sporty models:

• Sports Cars: Many sports cars come with factory-installed lip spoilers that enhance aerodynamics.
• Luxury Cars: High-end luxury vehicles incorporate these features as part of their stylish design.
• Muscle Cars: Classic muscle cars may also include lip spoilers to help with cornering while keeping their iconic style.

These examples show how versatile lip spoilers can be across different types of vehicles.

Use Cases

Installing a lip spoiler offers several benefits:

1. Subtle Handling Improvement: They help keep traction during turns.
2. Minimal Aerodynamic Drag Increase: Lip spoilers typically result in only slight drag increases.
3. Fuel Efficiency Gains: Better aerodynamics can lead to improved fuel economy in certain driving conditions due to reduced wind resistance.

These advantages make them appealing not just to racing fans but also to everyday drivers seeking better vehicle performance.

Pros and Cons

When deciding whether to add a lip spoiler, it’s helpful to look at the pros and cons:

Pros	Cons
Easy installation	Modest aerodynamic influence
Enhances vehicle aesthetics	Limited impact on high-speed stability
Improves handling	May need specific mounting techniques

Installation is usually straightforward and can often be done as a DIY project. However, keep in mind that the overall aerodynamic effect is modest when compared with larger wings or adjustable rear spoilers.

Knowing more about lip spoilers can help car enthusiasts make smart choices when looking to optimize both looks and performance without going overboard.

Choosing the Right Wing Spoiler: A Decision-Making Guide

Factors to Consider

When picking a wing spoiler for your car, there are several key points to think about. Knowing these factors can really affect how your car performs and looks.

1. Vehicle Type: The kind of car you drive matters a lot. A sedan, coupe, or sports car all need different types of spoilers. For high-performance vehicles, bigger rear wings can help create more downforce when driving fast.
2. Intended Use: Think about where you’ll be using your vehicle most. If it’s for daily street use, a spoiler that looks good while still giving some aerodynamic benefits might work best. For racing or track use, you’ll want a more aggressive design that boosts grip and stability during fast turns.
3. Desired Performance: Different spoilers give different levels of performance and aerodynamic efficiency. Adjustable spoilers let you tweak the settings based on driving conditions. Fixed spoilers provide steady performance but can’t be changed once installed.
4. Aesthetics: The look of the spoiler is important too! Choose one that fits your car’s style without overpowering it.
5. Legal Compliance: Always check local laws about car modifications to make sure you’re following regulations in your area.
6. Car Modifications & Automotive Design: Consider how a wing spoiler fits into any other upgrades you might be making to your vehicle’s design and performance—like body kits or suspension changes.
7. Racing Technology Insights: Stay updated on the latest in racing tech related to aerodynamics. Knowing about airflow management can really help when picking out the right spoiler.

Decision Tree/Flowchart for Spoiler Selection

A flowchart can help simplify the decision-making process for choosing a wing spoiler:

1. Start by deciding between an adjustable or fixed spoiler:
   • If you want flexibility for tuning based on conditions (like daily driving versus track days), choose an adjustable spoiler.
   • If you need consistent downforce all the time (like for racing), go with a fixed option.
2. Next, think about what level of performance you want:
   • For high-performance needs, look for larger rear wings made for increasing downforce.
   • For moderate improvements, smaller lip spoilers may work while keeping your car’s style intact.

This step-by-step method helps car enthusiasts make informed choices aligned with their goals.

Addressing Specific Use Cases

Different situations call for different wing spoilers:

• Street Cars vs Track Cars: Street cars usually do well with subtle lip or small rear-mounted wings that enhance handling without losing everyday comfort. Track cars should have larger rear wings that create significant downforce needed during races where speed and stability are key.
• High-Performance Vehicles: Owners who want to get the most out of high-performance models should think about using lightweight materials like carbon fiber to reduce weight while increasing strength at high speeds.
• Luxury Cars: For luxury vehicles where style is just as important as function, it’s smart to choose discreet yet effective designs that boost aerodynamics without taking away from the classy look of premium brands.

By thinking through these factors and using straightforward decision-making tools like flowcharts tailored to specific use cases, drivers can confidently find the right wing spoiler that fits their unique needs and preferences.

Materials, Aerodynamic Principles, and Advanced Spoiler Concepts

When you’re looking at wing spoilers for cars, knowing the materials is super important. The most common spoiler materials are ABS plastic, fiberglass, and carbon fiber. Each of these has unique properties that can impact how well they perform and how long they last.

ABS Plastic Spoilers

ABS plastic is often chosen because it’s affordable and easy to shape. It can handle some impact but may not perform well in really harsh conditions. Its light weight helps improve overall vehicle efficiency.

Fiberglass Spoilers

Fiberglass strikes a good balance between being light and strong. It can be molded into various shapes while still holding its form. Just be careful when installing it; fiberglass can crack if it’s stressed too much.

Carbon Fiber Spoilers

Carbon fiber is famous for its strength while being very light. It’s a popular choice for high-performance vehicles. Though it’s pricier than other materials, it greatly improves aerodynamics by reducing drag and increasing downforce at higher speeds.

Understanding basic aerodynamic principles is key when figuring out how different spoilers work on a vehicle. Important concepts include lift, drag, downforce generation, and angle of attack:

• Lift Control: Lift happens due to air pressure differences above and below an object. This upward force can actually be bad in racing where keeping stability at high speeds matters.
• Drag Devices: Drag is the resistance a car faces while moving through the air. A good spoiler design minimizes drag while maximizing downforce.
• Downforce Generation: Downforce pushes the car down onto the road, which boosts tire grip when driving fast—great for cornering.
• Angle of Attack (AoA): This is the angle between the airflow direction and the wing’s chord line. It significantly affects lift and drag; optimizing this angle improves performance based on different driving conditions.

Advanced concepts like active aero systems are becoming common in modern car designs. These systems change automatically with speed or conditions to make aerodynamics better as you drive. Various airfoil profiles also contribute to better performance; symmetrical wings help with balanced lift, while cambered designs increase downforce without adding too much drag.

Computational Fluid Dynamics (CFD) has changed how spoilers are designed by letting engineers simulate airflow around different shapes before making real prototypes. This helps in fine-tuning their designs for maximum efficiency across various driving conditions.

For anyone wanting detailed specs on airfoil types used in spoilers or advanced parts like high-lift devices or adjustable wings, specialized engineering resources or manufacturer documents focused on motorsport applications will be very useful.

FAQs About Types of Wing Spoilers

What are the different types of wing spoilers?

Wing spoilers come in various forms, including fixed spoilers, adjustable spoilers, lip spoilers, and racing spoilers. Each type serves specific aerodynamic functions and impacts vehicle performance differently.

How do wing spoilers affect vehicle aerodynamics?

Wing spoilers reduce lift and increase downforce. This enhances stability during high-speed driving and improves handling through turns. The design influences airflow management around the car.

What are the benefits of adjustable spoilers?

Adjustable spoilers provide flexibility for tuning based on speed and conditions. They optimize downforce and drag control, enhancing vehicle performance during different driving scenarios.

What materials are used to make wing spoilers?

Common materials include ABS plastic, fiberglass, and carbon fiber. Each material offers unique advantages in terms of weight, strength, and cost-effectiveness.

How are wing spoilers mounted and installed?

Mounting varies by spoiler type. Generally, they attach using brackets or adhesive methods. Proper installation is crucial for ensuring aerodynamic efficiency and performance.

Are there legal considerations regarding spoiler installation?

Yes, regulations vary by location. Some regions impose restrictions on spoiler size and visibility obstruction. It’s essential to check local laws before installation.

Additional Insights into Wing Spoilers

• Spoiler Types for Cars: Include rear spoilers, front spoilers, side spoilers, and roof spoilers.
• Aircraft Spoilers: Used to reduce lift during landing; includes landing spoilers and approach spoilers.
• Aerodynamic Principles: Effective designs utilize lift control to improve speed stability.
• High-Lift Devices: Enhance downforce for improved cornering in racing applications.
• Spoiler Effectiveness: Depends on factors like angle of attack (AoA) and airflow disruption.
• Drag Devices: Minimize air resistance while maximizing aerodynamic balance.
• Spoiler Maintenance: Regular checks ensure optimal performance; damage repair is crucial.
• DIY Spoiler Installation: Enthusiasts often install aftermarket wings for customization.
• Aerodynamics in Aviation: Flight control surfaces utilize similar principles as car wing designs.

This concise guide provides valuable insights into the world of wing spoilers, enhancing both automotive knowledge and practical understanding of their function in aerodynamics.

Related Topics

• types of car spoilers
• types of adjustable spoilers
• types of spoiler materials
• types of aerodynamic devices
• types of car modifications
• types of racing spoilers
